SA&J DB50M-33XM/33XF/3XX-2W/P123/TRGY-XX 2-Wire Intercom Tally Breakout Cable For Select Sony CCU's HDCU-3500 HDCU-5500 HDCU-3100 HDCU-3170

Our Item# DB50M-33XM/33XF/3XX-2W/P123/TRGY-XX
SA & J Electronics Inc.
Mfr# DB50M-33XM/33XF/3XX-2W/P123/TRGY-XX
2-Wire Intercom & Tally Breakout Cable For Select Sony CCU's (HDCU3500 HDCU5500 & Similar), DB50 50pin Male To 7 XLR's: Eng/Production In/Out, Pgm In 1-2-3, Tally In Red-Green-Yellow, 3 ft. Long
$381.00
Available to Order Ships in ~8-11 business days
Select connector for the 2-Wire ENG/PROD I/O intercom connection on this cable: 3pin XLR Male or 3pin XLR Female

Product Notes

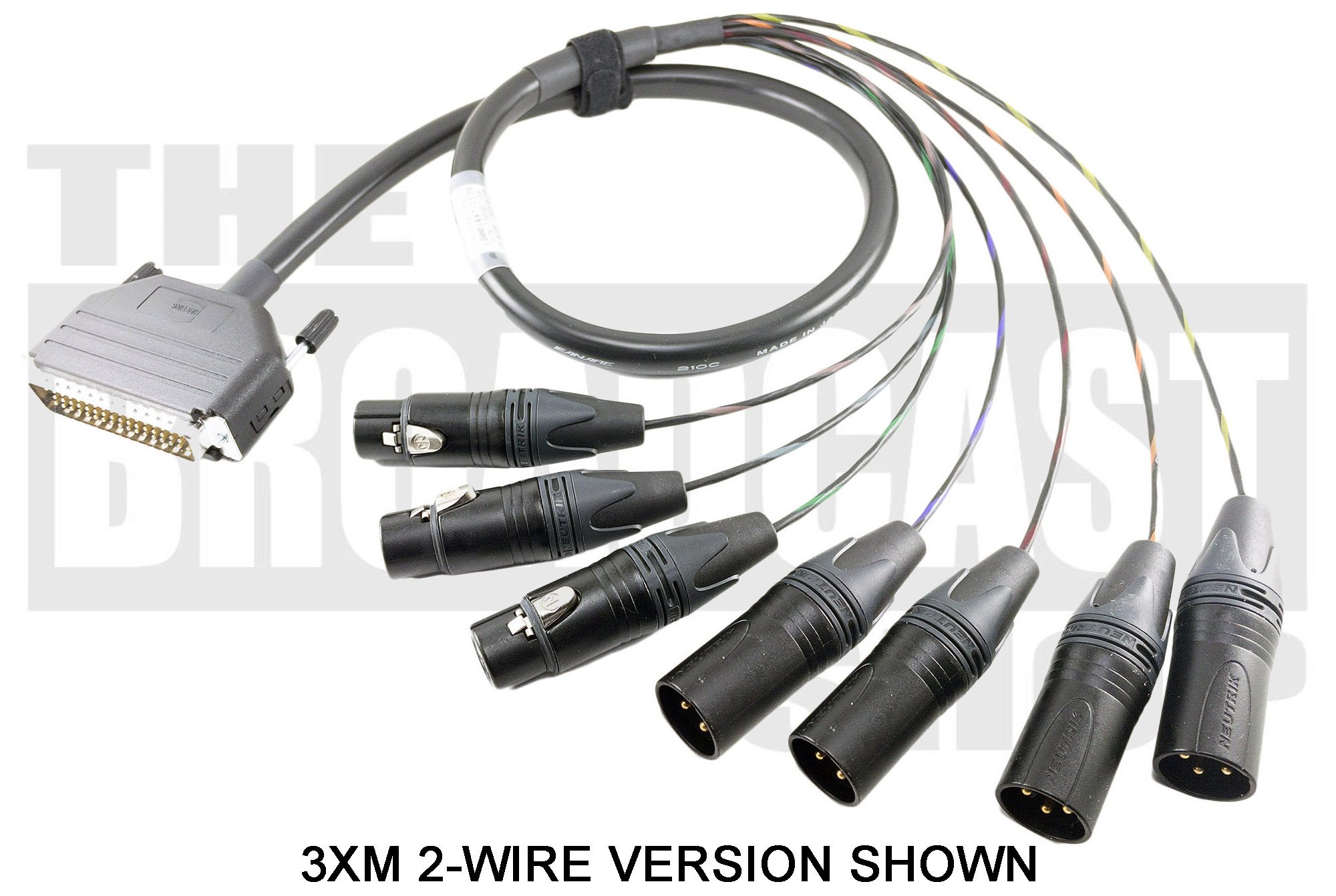

2-Wire Intercom/Tally Breakout Cable For Select Sony CCU's.

DB50 Male To 7 XLRs

This Cable Brings Out The Following Connections To 3pin XLRs:
  • Eng/Production In/Out  (Choose either 3pin XLR Male or Female) [ENG/PROD I/O]
  • Program 1 In (3pin XLR Female) [PGM-1-In]
  • Program 2 In (3pin XLR Female) [PGM-2-In]
  • Program 3 In (3pin XLR Female) [PGM-3-In]
  • Tally Red (3pin XLR Male) [TALLY-RED]
  • Tally Green (3pin XLR Male) [TALLY-GRN]
  • Tally Yellow (3pin XLR Male) [TALLY-YEL]
Intercom and Tally Breakout Adapter Cable

Standard Length 3 ft. (custom lengths available).  These cables are made in-house and are made upon order.


Works With Sony CCU's:

  • HDCU-3100 (HDCU3100)
  • HDCU-3170 (HDCU3170)
  • HDCU-3500 (HDCU3500)
  • HDCU-5000 (HDCU5000)
  • HDCU-5500 (HDCU5500)
  • And Similar Models



Tally XLR wiring: Tally XLR's are wired Pin2: Tally-X, Pin3: Tally-Y. The normal procedure to turn on a Tally light would be to short XLR pins 2 & 3 which completes (closes) the circuit and therefore turns on the Tally (some CCU's may differ, refer to your CCU's service manual for complete information).

Please note that not all CCU's, intercom systems & tally systems are capable of utilizing all connection types, so please refer to your system's specifications for more information on capabilities, configuration and use.

Other DB50 cable configurations are also available (PGM-1, PGM-2, PGM-3, Tally-Red, Tally-Green, Tally-Yellow, 2-Wire Intercom, 4-Wire Intercom, etc. — please see this list or contact us with your specific needs).
