SA&J DB15M-83XF-XX Tally Out Adapter Cable For Panasonic AV-HS410N AV-UHS500

Our Item# DB15M-83XF-XX
SA & J Electronics Inc.
Mfr# DB15M-83XF-XX

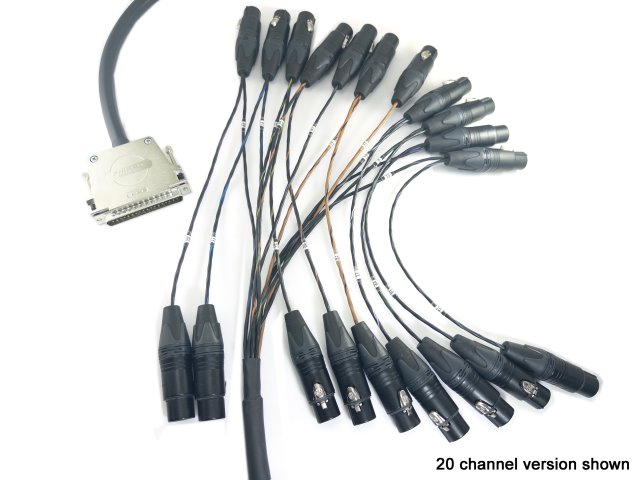

8-Channel Tally Output Breakout XLR Cable For Select Panasonic Video Switchers (AVHS410n AVUHS500), DB15 Male To Eight 3pin XLR Female XLR's, 3 ft. Long, Works With SA&J CCU Tally/Intercom Cables
$325.00
Available to Order Ships in ~10-13 business days
Return Classification
Special Order

Product Notes

Tally Out Adapter Cable For Select Panasonic Video Switchers:
  • AV-HS410N
  • AV-UHS500
Outputs 8 channels of tally (1 to 8).

DB15 Male To (8) 3pin XLR Female XLR's


Custom lengths available; can also be customized with male xlr's and/or a ninth channel.



Works with Tally portion of our SA&J CCU Tally/Intercom Cables

These cables are made in-house and are made upon order.  Custom lengths and/or custom XLR genders available.



Please note that not all CCU's, tally systems and intercom systems are compatible, so please refer to your system's specifications for more information on capabilities, configuration and use.

Ensure that the menu settings on your switcher and on the camera CCU are set properly and that the tally circuits are compatible.

Tally XLR wiring: Tally XLR's are wired Pin2: Tally-X (hot), Pin3: Tally-Y (cold). The normal procedure to turn on a Tally light would be to short XLR pins 2 & 3 which completes (closes) the circuit and therefore turns on the Tally (some units may differ, refer to your units service manual for complete information).
