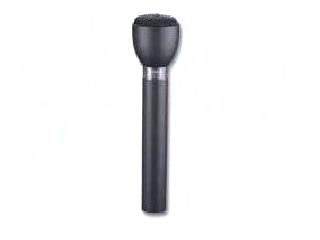

Electro-Voice 635N/D-B Microphone Handheld Omni-Directional Interview Mic Black N/Dym Element

Our Item# EV-635N/D-B
Mfr# 635N/D-B
Microphone, Handheld, Omni-Directional, Interview Mic, Black, N/Dym Element Design Offers Approximately 4db Higher Output & Better Shock Protection, 5.8" (148mm) Long
List Price $206.00
Our Price $163.00
Available to Order Ships in ~8-11 business days

Product Notes

• Uniform 80 - 13000 Hz Frequency Response
• N/Dym® Element Design Offers Higher Output (~4db)
• Acoustalloy® Diaphragm Material For Very Smooth Response Over A Wide Frequency Range
• Integral Windscreen And Blast Filter
• Comes With Stand Adapter

Windscreen Not Included.

Generating Element: Dynamic
Frequency Response (See Figure 1): 80-13, 000 Hz
Polar Pattern: Omnidirectional
Impedance (Low): 150 Ohms
Sensitivity At 1 Khz, Open-Circuit Voltage (0 Db = 1 Mv/Dyne/Cm2): 2.0 Mv
Power Level (0 Db = 1 Mw/10 Dynes/ Cm2): –51 Db
Diaphragm Material: Acoustalloy®
Magnetic Circuit: N/Dym® Magnet In A Nonwelded Circuit
Microphone Connector: 3 Pin, XLR-Type, Pin 2 Positive
Polarity (See Figure 2): Pin 2 Positive, Referenced To Pin 3 With Positive Pressure On Diaphragm
Case Material: Steel
Finish: 635n/D: Fawn Beige; 635n/D-B: Semigloss "Camera" Black
